MANO - HAND 2.0mm WISE-LOCK SYSTEM PLATES

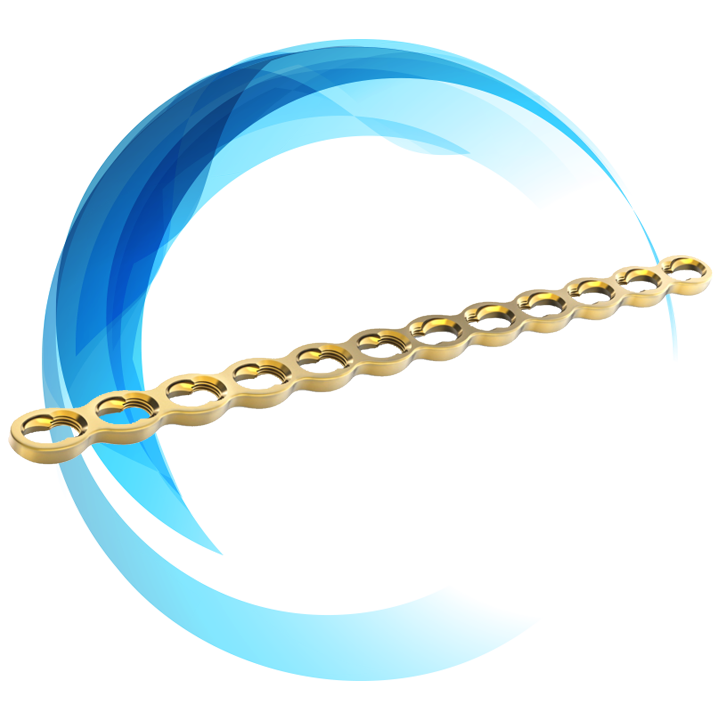

2.0mm Wise-Lock Combined Adaptation Straight Plate
Placa de Adaptación Recta Combinada 2.0mm
Ficha técnica
| CODE | HOLES | LENGTH |
|---|---|---|
| TI-555.212 | 12 | 81.26mm |

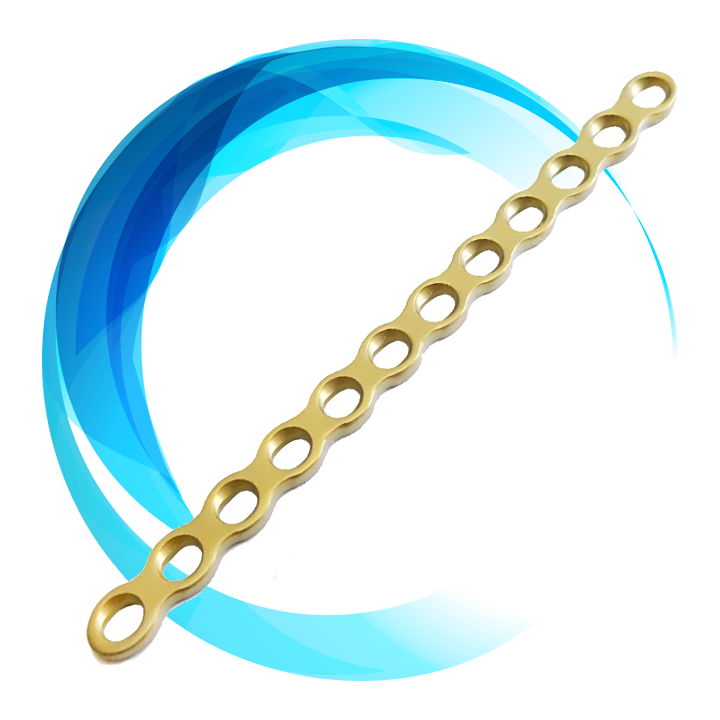

2.0mm Wise-Lock Adaptation Straight Plate
Placa de Adaptación Recta Bloqueada 2.0mm
Ficha técnica
| CODE | HOLES | LENGTH |
|---|---|---|
| TI-821.212 | 12 | 71mm |
2.0mm Wise-Lock Condylar Plate
Placa Condilar 2.0mm
Ficha técnica
| CODE | HOLES | LENGTH |
|---|---|---|
| TI-559.204 | Shaft 4, Head 2 | 33.6mm |
| TI-559.205 | Shaft 5, Head 2 | 40.4mm |
| TI-559.206 | Shaft 6, Head 2 | 47.2mm |
| TI-559.207 | Shaft 7, Head 2 | 54.0mm |
2.0mm Wise-Lock Low Contact Plate
Placa LC DCP 2.0mm
Ficha técnica
| CODE | HOLES | LENGTH |
|---|---|---|
| TI-505.204 | 4 | 31mm |
| TI-505.204 | 5 | 38mm |
| TI-505.204 | 6 | 45mm |
| TI-505.204 | 7 | 52mm |
| TI-505.204 | 8 | 59mm |
| TI-505.204 | 10 | 73mm |
2.0mm Wise-Lock Mini Condylar Plate
Placa Mini Condilar 2.0mm
Ficha técnica
| CODE | HOLES | OVERALL HEIGGHT | TYPE |
|---|---|---|---|
| TI-515.07L | 7 | 29mm | Left | TI-515.07R | 7 | 29mm | Right |
2.0mm Wise-Lock Rotation Correction Plate
Placa de Corrección de Rotación 2.0mm
Ficha técnica
| CODE | HOLES | LENGTH |
|---|---|---|
| TI-989C.204 | Shaft 4, Head 2 | 34mm |
| TI-989C.205 | Shaft 5, Head 2 | 40mm |
2.0mm Wise-Lock Adaptation T-Plate
Placa de Adaptación en T 2.0mm
Ficha técnica
| CODE | HOLES |
|---|---|
| TI-555.207T | Shaft 7, Head 2 |

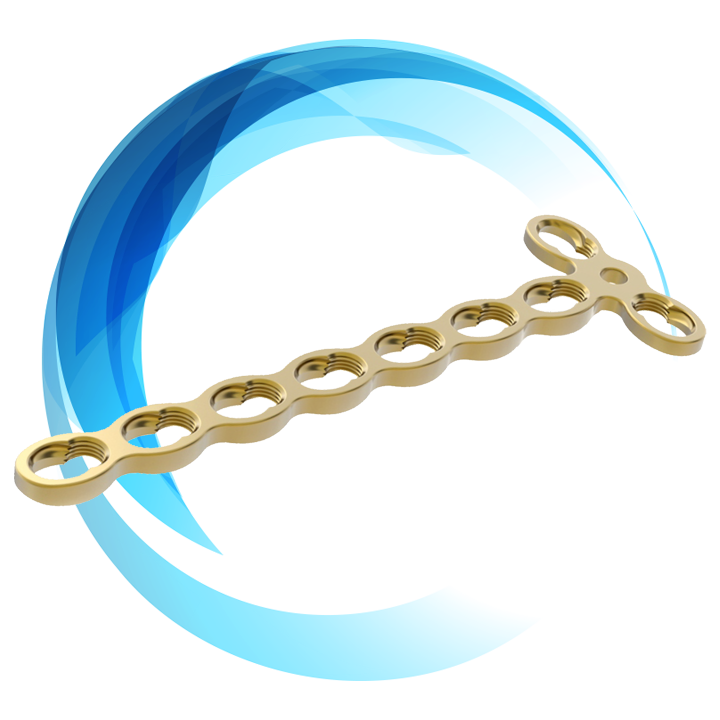

2.0mm Wise-Lock T-Plate
Placa en T 2.0mm
Ficha técnica
| CODE | HOLES | LENGTH |
|---|---|---|
| TI-556.204 | Shaft 4, Head 3 | 32.1mm |
| TI-556.205 | Shaft 5, Head 3 | 38.9mm |
| TI-556.206 | Shaft 6, Head 3 | 45.7mm |
| TI-556.207 | Shaft 7, Head 3 | 52.5mm |
2.0mm Wise-Lock Adaptation Y-Plate
Placa de Adaptación en Y 2.0mm
Ficha técnica
| CODE | HOLES |
|---|---|
| TI-555.207Y | Shaft 7, Head 3 |

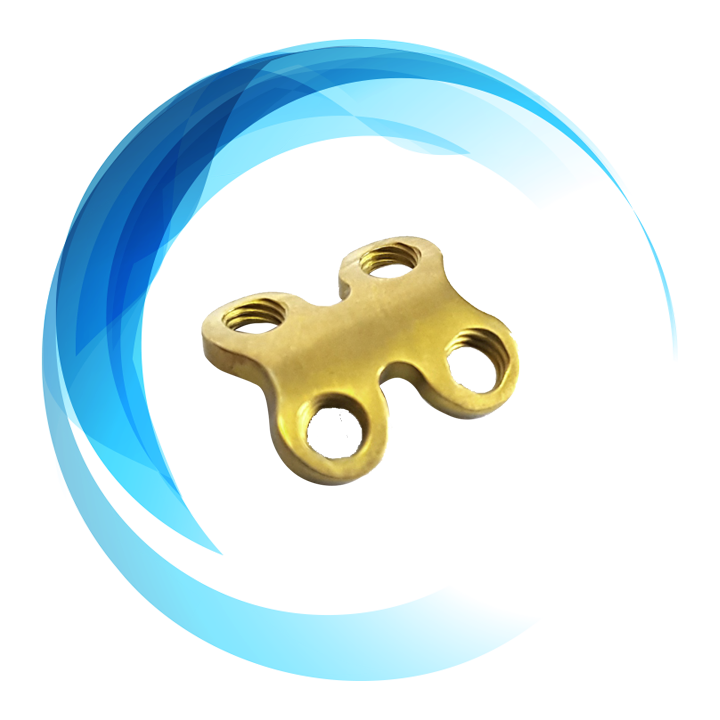

2.0mm Wise-Lock Mini H-Plate
Placa Mini en H 2.0mm
Ficha técnica
| CODE | HOLES | EXTERNAL DIMENSIONS |
|---|---|---|
| TI-814.04 | 4 | 11x12mm |
SCREWS
2.0mm Cortical Screws, Self Tapping, (Star Head)
Ficha técnica
| CODE | LENGTH |
|---|---|
| TI-1022.06 | 6mm |
| TI-1022.07 | 7mm |
| TI-1022.08 | 8mm |
| TI-1022.09 | 9mm |
| TI-1022.10 | 10mm |
| TI-1022.11 | 11mm |
| TI-1022.12 | 12mm |
| TI-1022.13 | 13mm |
| TI-1022.14 | 14mm |
| TI-1022.16 | 16mm |
| TI-1022.18 | 18mm |
| TI-1022.20 | 20mm |
| TI-1022.22 | 22mm |
| TI-1022.24 | 24mm |
| TI-1022.26 | 26mm |
| TI-1022.28 | 28mm |
| TI-1022.30 | 30mm |
| TI-1022.32 | 32mm |
| TI-1022.34 | 34mm |
| TI-1022.36 | 36mm |
| TI-1022.38 | 38mm |
| TI-1022.40 | 40mm |
2.0mm Wise-Lock Screws, Self Tapping, (Star Head)
Ficha técnica
| CODE | LENGTH |
|---|---|
| TI-1131.06 | 6mm |
| TI-1131.07 | 7mm |
| TI-1131.08 | 8mm |
| TI-1131.09 | 9mm |
| TI-1131.10 | 10mm |
| TI-1131.11 | 11mm |
| TI-1131.12 | 12mm |
| TI-1131.13 | 13mm |
| TI-1131.14 | 14mm |
| TI-1131.16 | 16mm |
| TI-1131.18 | 18mm |
| TI-1131.20 | 20mm |
| TI-1131.22 | 22mm |
| TI-1131.24 | 24mm |
| TI-1131.26 | 26mm |
| TI-1131.28 | 28mm |
| TI-1131.30 | 30mm |
| TI-1131.32 | 32mm |
| TI-1131.34 | 34mm |
| TI-1131.36 | 36mm |
| TI-1131.38 | 38mm |
| TI-1131.40 | 40mm |
